一次成型大口径聚氨酯水带

  • 所属分类:大口径水带

  • 点击次数:0
  • 发布日期:2022/04/28
详细介绍

产品特点:Features

免维护、无需清洁或干燥

使用寿命长,耐磨耗、耐刮擦,可在砂石、水泥等或是其它比较恶劣的环境下使用

内壁光滑,水流阻力小

在承压状态下的伸长率几乎为O,防止水带扭曲导致水流阻力增大和水带的磨损 耐热,耐燃油、化学品、紫外线、臭氧、水、微生物等

内管和表面:聚氨酯( TPU)

加强材料:高强涤纶长丝、圆织机编织

特殊的挤出技术“一次成型”工艺,使得内外表面材料将加强编织层完全包覆,形成完整的一体,具有优越的综合性能

温度范围:-50摄氏度至70摄氏度

Easy deaning and no drying required

Designed for Long service life Tough and durable with exceptional resistance to abrasion and cutting for use on a wide variety of environment conditions

Protected against mechanical damages

Very low elongation (compared with vulcanized process) under pressure, prevents hose from 'snaking'

High resistant to heat, fuels, chemicals, UV, ozone, weathering, hydrolysis, and microbiological attack

Tube & Cover: Thermoplastic polyurethane (TPU) .

Reinforcement:  High tenacity polyester filament, circular weaving

The special extrusion "through-the-weave' process gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester

Te mperature  range from-50℃  to  +70℃ .




压力要求:

Pressure Required

一次成型大口径聚氨酯水带



应用范围:Application

Application:建筑、采矿、船用、化学品输送、压裂液输送、石油和天然气(带导电纤维)、饮用水、废水、城市应急供排水

Construction,  Mining, Marine, Transfer Chemicals,  Frac Water Services,Oil&Gas(with electro-conductive fiber), Potable Water, Waste Water or transfer over hig hly abrasive ground


可供颜色:Color


黑色、红色、蓝色,也可根据客户要求

Black, Red,Blue,can be customized.


1503301942892814 拷贝.jpg


Yellow, Brown,or as per customer's instruction.



生产标准:Standard

GB6246,EN14540,UNI9487或者根据客户要求的标准

GB6246,  EN14540,  UN19487, or as per customer's instruction.







标准长度:

Standard Length

最长可达到200米

up to 200M(660feet)

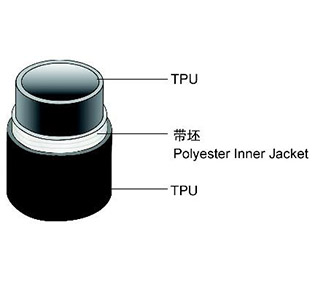

产品构造:Constructions

一次成型大口径聚氨酯水带
